Neitz Full High Definition Camera System BS CAMERA

Features

- Ultra-compact and high-sensitive. Provides full high-definition images.
- Reduced corneal reflection in images

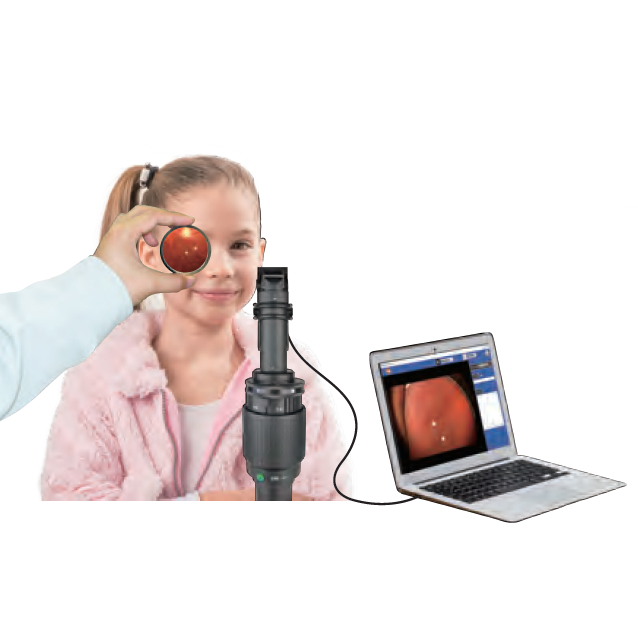

- Displays and saves fundus images (still and movie) from the doctor's perspective.
- Best suitable for education and informed consent in the clinical practice.



Camera Specifications

Effective Pixcels : 2.13 mega pixels 1945(H)×1097(V) Pixels
CMOS Colour Imaging Sensor IMX291(Sony) 1/2.8 inch 6.46nmm diagonal
Transfer Method : Progressive
Shutter System : Rolling Shutter
Output Image Format : MJPEG
Data Transfer System : USB2.0 (Hi Speed)

Max. Frame Rate:
VGA  640×480 Pixels  : 30fps
HD  1280×720 Pixels  : 30fps
FHD 1920×1080 Pixels : 30fps

Sensitivity (F5.6) : 1300mV CMOS sensor characteristics typical value
Driver : Not needed. USB Video Class (UVC)  Windows10
Interface : USB Mini-B

Main IPS Functions
Adjustment: Exposure (Auto & Manual), Colour Temperature (Auto & Manual),
Gain, Saturation, Sharpness, Gamma Correction

Power Supply : Power Supply Voltage 5.0 V(USB bus power)
Max Power Consumption Approx. 200 mA
Camera Properties : Brightness, Contrast, Hue, Vividness,
Definition, Gamma, Gain, White Balance, Backlight Correction
Demensions / Weight: 20×20×23.4 mm (without protrusion ) / Approx. 12 g

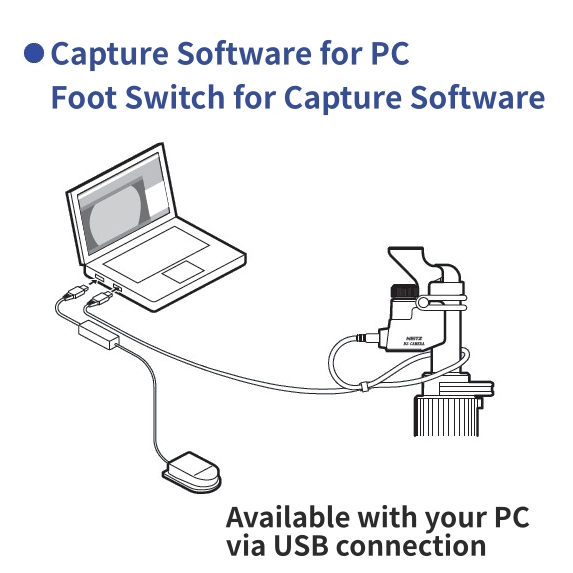

Capture Software

【Basic Performance】
Camera : Compatible with USB cameras provided by Neitz
File Format : Movie MP4 / AVI / (sound recordable), Still image JPG
Resolution Setting : Selectable from VGA, HD, FHD

Comment Entering :
The file name is same as the image file.
File name + western year+month+day+hour+min. +millisecond in 3
When a file name is entered : (File name) 2020-02-04- 13-28-35-123-jpg(extension).txt

Display Language : English, Simplified Chinese
Reverse Image: Horizantal and Vertical Flip
Colour Temperature : Selectable from 6000/5500/5000/4500/3300K (in the simple setting window)
Flicker Setting: 50/60Hz/OFF

【System Requirements】
OS : Windows10
Memory : 8GB or more CPU : Core i7 Clock Frequency 2.5GHz or over
Display : Full HD 1920×1080 or more recommended

Contents

BS CAMERA main body
Fixing band (2 pcs.)
USB cable (1 pc.)
Capture Software CD-ROM
Foot switch
Storage case
